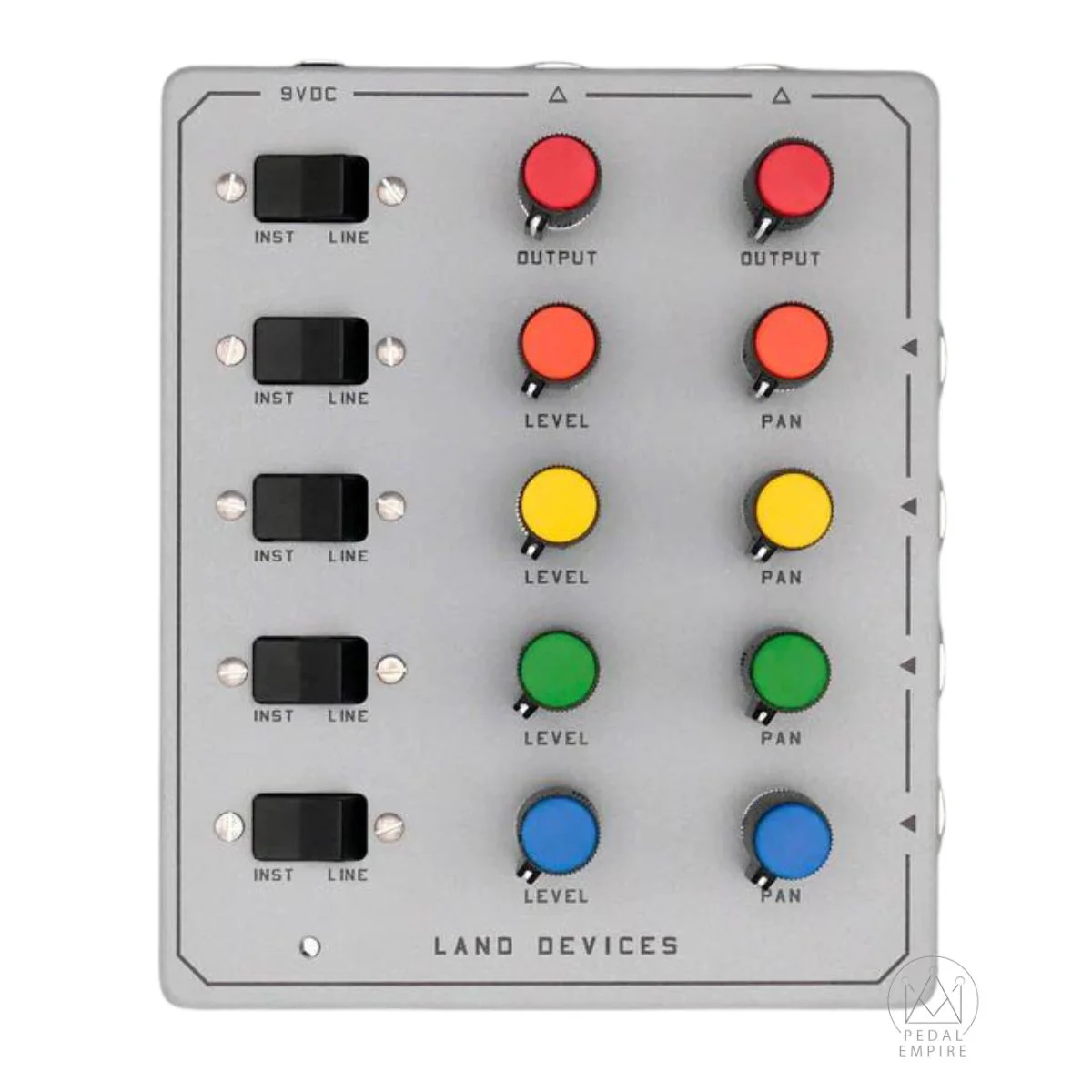

Land Devices - Land Mixer GREY

Land Devices - Land Mixer

Land Mixer is a portable utility device. It has four mono inputs, each with level and panning controls. Each channel can be used with instrument level or line level, with a flip of a switch. Each channel has a control for panning between two mono outputs. Each output has an output level control. The switch controls both outputs for instrument level out or line level out.

Specifications:
- 120mm x 147mm x 58mm
- 1/4" mono jacks
- Input impedance: 1MΩ
- Output impedance: 1kΩ
- Instrument channel gain: 12dB
- Line channel gain: 20dB
- 2.1mm DC Connector
- 9VDC centre negative power
- Current draw: 30mA
